3MM Mist bicolor

3mm dual color direct-insert LED diode;
Working voltage:1.8-3.5 v;
Luminous angle: 50°/60°/80°/100°/120°/180°;
Minimum package: 1K/pack;
Luminous color:yellow-green /blue/yellow/red/green

Online inquiry

Previous Next

Detailed content

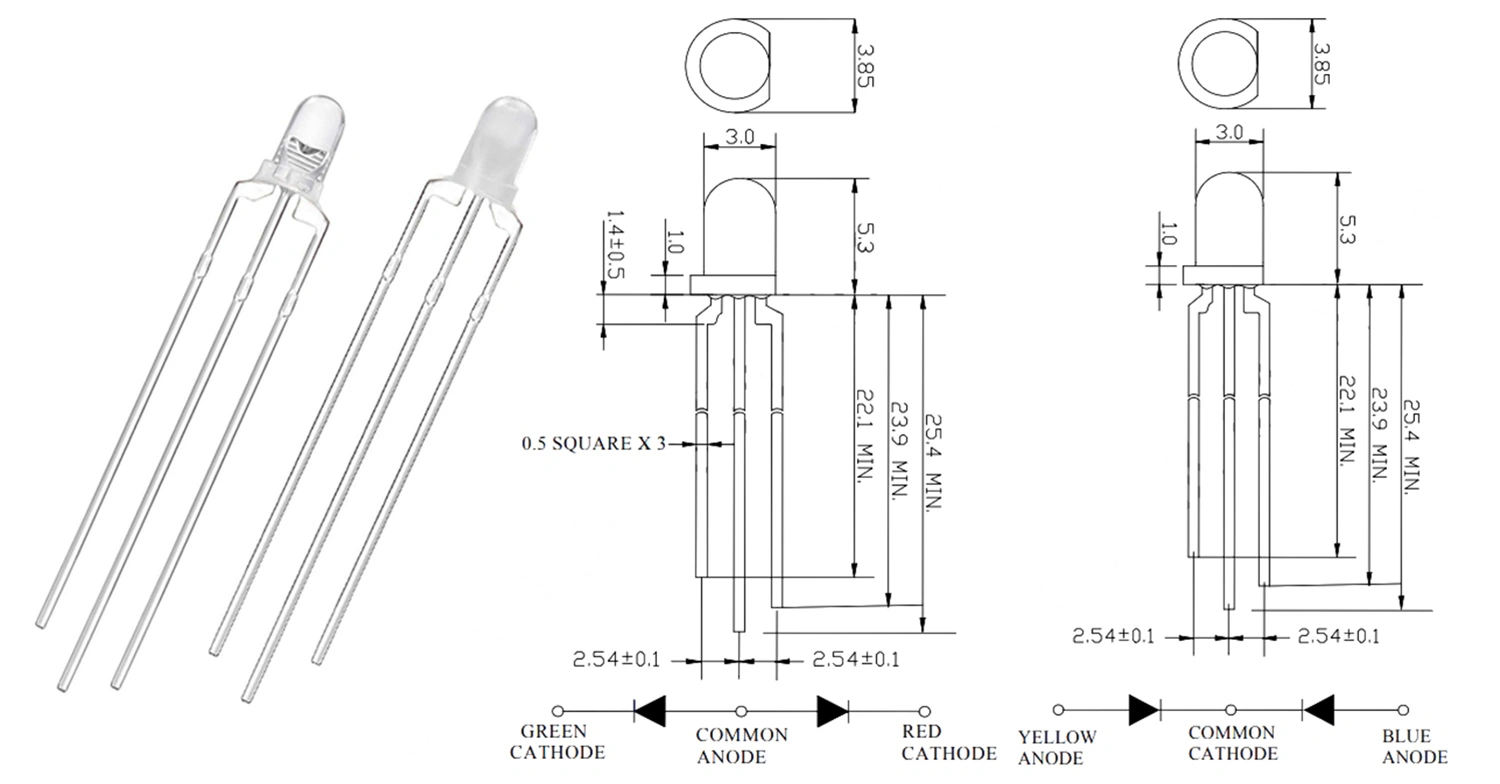

Product size:

Product parameters:

( P/N)	(Emitted Color)	(Resin Color)	(Viewing Angle)	IF(mA) Test	(Forward Voltage)	(Dominant wavelength)	(Luminous intensity)
3WRG4-Y-W-A2	(Red)	(White Diffused)	180°	20mA	2.2-2.4V	618-630nm	210-500mcd

	(Green)				3.0-3.4V	515-530nm	1000-2000mcd

3WRG4P-Y-W-A2	(Red)	(White Diffused)	120°	20mA	2.0-2.4V	630-645nm	30-70mcd

	(Yellow-Green)				2.2-2.4V	564-576nm	20-50mcd

3WRB4-Y-W-A2	(Red)	(White Diffused)	120°	20mA	2.0-2.4V	620-630nm	600-1000mcd

	(Blue)				3.0-3.4V	460-475nm	350-600mcd

3WBG4-Y-W-A2	(Blue)	(White Diffused)	50°	20mA	3.0-3.5V	460-475nm	600-1000mcd

	(Green)				3.0-3.5V	515-535nm	1700-2900mcd

3WRG4P-Y-W-A1	(Red)	(White Diffused)	100°	20mA	2.0-2.4V	620-630nm	10-20mcd

	(Yellow-Green)				2.2-2.6V	565-575nm	20-45mcd

3WRG4P-Y-W-A1	(Red)	(White Diffused)	60°	20mA	2.1-2.4V	630-640mcd	120-300mcd

	(Yellow-Green)				2.1-2.4V	567-577mcd	70-160mcd

3WYB4-Y-W-A1	(Yellow)	(White Diffused)	80°	20mA	2.0-2.4V	585-595nm	45-120mcd

	(Blue)				3.2-3.4V	460-470nm	350-600mcd

3WRB4-Y-W-A1	(Red)	(White Diffused)	60°	20mA	1.8-2.4V	620-630nm	160-460mcd

	(Blue)				2.8-3.4V	460-475nm	600-1700mcd
