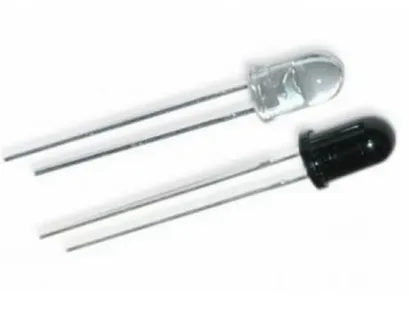

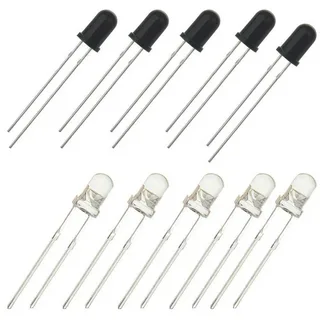

5mm Infrared transmitter and receiver

Size: 5mm diameter;
Wavelength: 850-950 nm;
Operating Current: Transmitter : 20 - 50mA; Receiver varies: 1- 10mA;
Forward Voltage(Transmitter):1.2-1.8V;
Operating Voltage(Receiver): 3-5V;
Field of View: 15-30 degrees;
Operating Temperature: -20°C to +85°C;
Radiation Intensity,Transmitter :10-50 mW (milliwatts);
Minimum package: 1000pcs/pack

Online inquiry

Previous Next

Detailed content

Product significant parameters:

5mm 接收发射对管.-2.png

Product name:	Product name:
5mm round head 850nm infrared emitting tube	5mm round head 850nm infrared receiving tube
Forward Current: 100mA	Range Of Spectral Bandwidth:
Forward Voltage:	Min:700nm Max:1000nm
If=20mA Typ:1.4V Max:1.65V	Wavelength Of Peak Sensitivity:
Radiant Intensity:	Typ:850nm
If=20mA Min:90mW/Sr Typ:110mW/Sr	Reverse Light Current:
Peak Wavelength:	Min:10uA Typ:25uA
Typ:850nm	Rise Time/Fall Time:
	Typ:50/50nS

Product name:	Product name:
5mm round head 940nm infrared emitting tube	5mm round head 940nm infrared receiving tube
Forward Current: 100mA	Range Of Spectral Bandwidth:
Forward Voltage:	Min:860nm Max:1000nm
If=20mA Typ:1.2V Max:1.4V	Wavelength Of Peak Sensitivity:
If=100mA Min:1.4V Typ:1.8V	Typ:940nm
Radiant Intensity:	Reverse Light Current:
If=20mA Min:20mW/Sr Typ:28mW/Sr	Min:20uA Typ:30uA
If=100mA Typ:85mW/Sr	Rise Time/Fall Time:
Peak Wavelength:Typ:940nm	Typ:5/5nS
