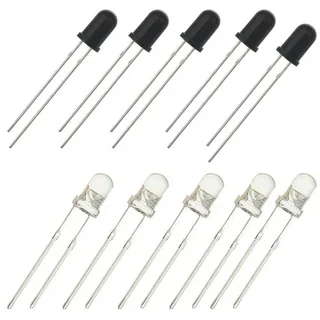

Infrared transmitter and receiver

The characteristics of Infrared transmitter and receiver include:
Bidirectionality( Simultaneously transmits and receives infrared signals, typically using a combined infrared LED and photodiode.);
Fast response;
Environmental adaptability;
Low power consumption;
Wide application;
Infrared transmitter and receiver is widely used in modern electronic products due to its simplicity, reliability and cost-effectiveness, especially in infrared communication and control systems.

Online inquiry

Previous Next

Detailed content

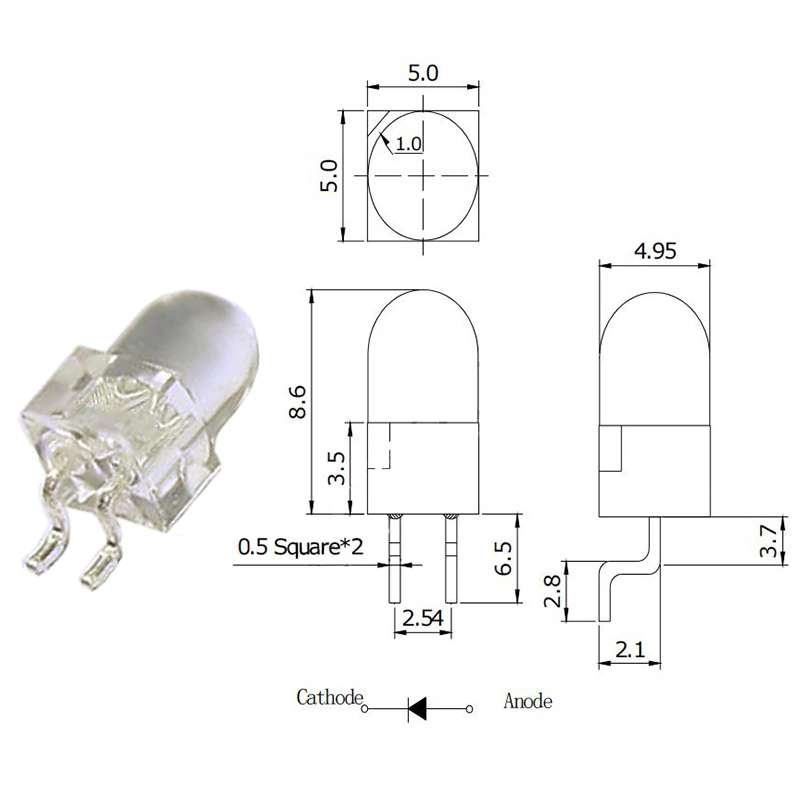

Product size1:

Product parameters1:

Product name:	Product name:
5mm round head square seat 850nm infrared emitting tube	5mm round head square seat 850nm infrared receiving tube
Forward Current:100mA	Range Of Spectral Bandwidth:
Forward Voltage:	Min:700nm Max:1000nm
If=50mA Min:1.1V Typ:1.2V	Wavelength Of Peak Sensitivity:
If=100mA Min:1.2V Typ:1.5V	Typ:850nm
Radiant Intensity:	Reverse Light Current:
If=50mA Min:90mW/Sr Typ:170mW/Sr	Min:25uA Max:45uA
If=100mA Min:150mW/Sr Typ:270mW/Sr	Rise Time/Fall Time:
Peak Wavelength:Typ:850nm	Typ:45/45nS Max:50/50nS

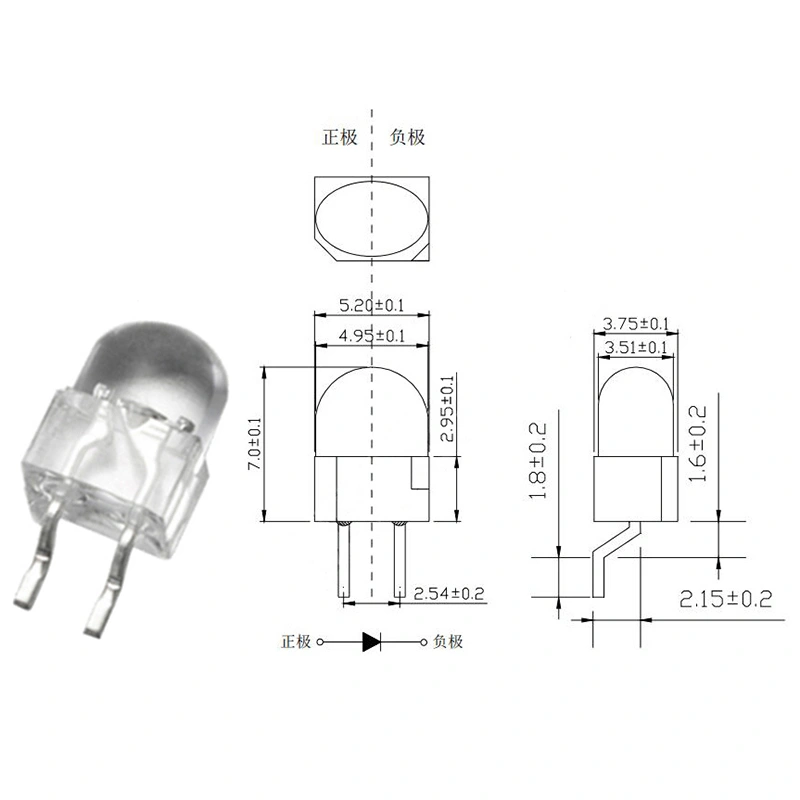

Product size 2:

Product parameters 2:

Product name:	Product name:
5mm oval square base 940nm infrared emitting tube	5mm oval square base 940nm infrared receiving tube
Forward Current:100mA	Range Of Spectral Bandwidth:
Forward Voltage:	Min:860nm Max:1000nm
If=50mA Min:1.1V Typ:1.2V	Wavelength Of Peak Sensitivity:
If=100mA Min:1.2V Typ:1.5V	Typ:940nm
Radiant Intensity:	Reverse Light Current:
If=100mA Min:30mW/Sr Typ:35mW/Sr	Min:10uA Max:20uA
Peak Wavelength:	Rise Time/Fall Time:
Typ:940nm	Typ:45/45nS Max:50/50nS

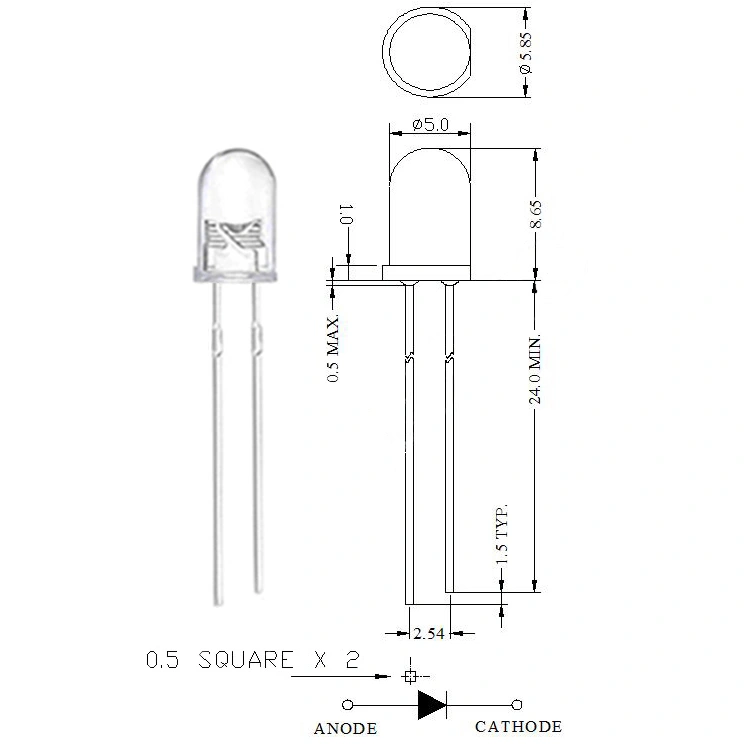

Product size3:

Product parameters 3:

Product name:	Product name:
5mm round head 850nm infrared emitting tube	5mm round head 850nm infrared receiving tube
Forward Current: 100mA	Range Of Spectral Bandwidth:
Forward Voltage:	Min:700nm Max:1000nm
If=20mA Typ:1.4V Max:1.65V	Wavelength Of Peak Sensitivity:
Radiant Intensity:	Typ:850nm
If=20mA Min:90mW/Sr Typ:110mW/Sr	Reverse Light Current:
Peak Wavelength:	Min:10uA Typ:25uA
Typ:850nm	Rise Time/Fall Time:Typ:50/50nS

Product name:	Product name:
5mm round head 940nm infrared emitting tube	5mm round head 940nm infrared receiving tube
Forward Current:100mA	Range Of Spectral Bandwidth:
Forward Voltage:	Min:860nm Max:1000nm
If=20mA Typ:1.2V Max:1.4V	Wavelength Of Peak Sensitivity:
If=100mA Min:1.4V Typ:1.8V	Typ:940nm
Radiant Intensity:	Reverse Light Current:
If=20mA Min:20mW/Sr Typ:28mW/Sr	Min:20uA Typ:30uA
If=100mA Typ:85mW/Sr	Rise Time/Fall Time:
Peak Wavelength:Typ:940nm	Typ:5/5nS
