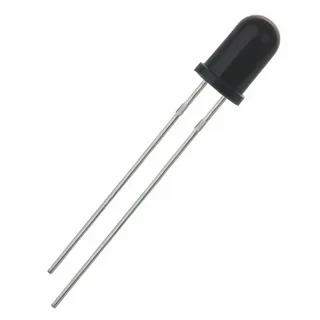

5MM Receiving tube

Product name:5mm IR receiver (850nm;940nm);
Range Of Spectral Bandwidth:Min:700nm Max:1000nm;Min:860nm Max:1000nm;
Wavelength Of Peak Sensitivity:Typ:850nm;Typ:940nm;
Reverse Light Current:Min:10uA Typ:25uA;Min:20uA Typ:30uA;
Rise Time/Fall Time:Typ:50/50nS;Typ:5/5nS;
Minimum package: 1000pcs/pack

Online inquiry

Previous Next

Detailed content

Product significant parameters:

Product name:	Product name:
5mm round head 850nm infrared receiving tube	5mm round head 940nm infrared receiving tube
Range Of Spectral Bandwidth:	Range Of Spectral Bandwidth:
Min:700nm Max:1000nm	Min:860nm Max:1000nm
Wavelength Of Peak Sensitivity:	Wavelength Of Peak Sensitivity:
Typ:850nm	Typ:940nm
Reverse Light Current:	Reverse Light Current:
Min:10uA Typ:25uA	Min:20uA Typ:30uA
Rise Time/Fall Time:	Rise Time/Fall Time:
Typ:50/50nS	Typ:5/5nS
