(P/N) |
（Operating Voltage） |
（Quiescent Current） |
（Receiving distance） |
（Operating Temperature） |

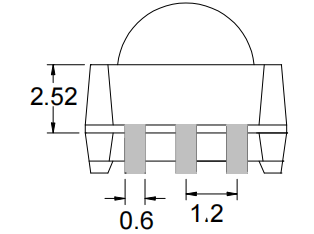

（Pin spacing） |
（Product Features） |
| DY-SMDWXXXXXX | 2.5-6.0V | 50-1200μA | 8-30m | -40— +80 ℃ | 1.2mm | Anti-light interference,long distance |
| DY-SMDVXXXXXX | 2.5-6.0V | 50-1200μA | 8-30m | -40— +80 ℃ | 1.2mm | Power consumption ， strong versatility |
| DY-SMDBXXXXXX | 2.5-6.0V | 50-1200μA | 8-30m | -40— +80 ℃ | 1.2mm | Ultra-low power consumption,strong penetration
|
| DY-SMDFXXXXXX | 2.5-6.0V | 50-1200μA | 8-30m | -40— +80 ℃ | 1.2mm | Strong anti-interference and long distance |
| DY-SMDAXXXXXX | 2.5-6.0V | 50-1200μA | 8-30m | -40— +80 ℃ | 1.2mm | Narrowband decoding, anti-WiFi interference |
| DY-SMDXXXXXXX | 2.5-6.0V | 50-1200μA | 8-30m | -40— +80 ℃ | 1.2mm | Continuous decoding, anti-5G interference |
| DY-SMDCXXXXXX | 2.5-6.0V | 50-1200μA | 8-30m | -40— +80 ℃ | 1.2mm | Continuous decoding, strong compatibility |
